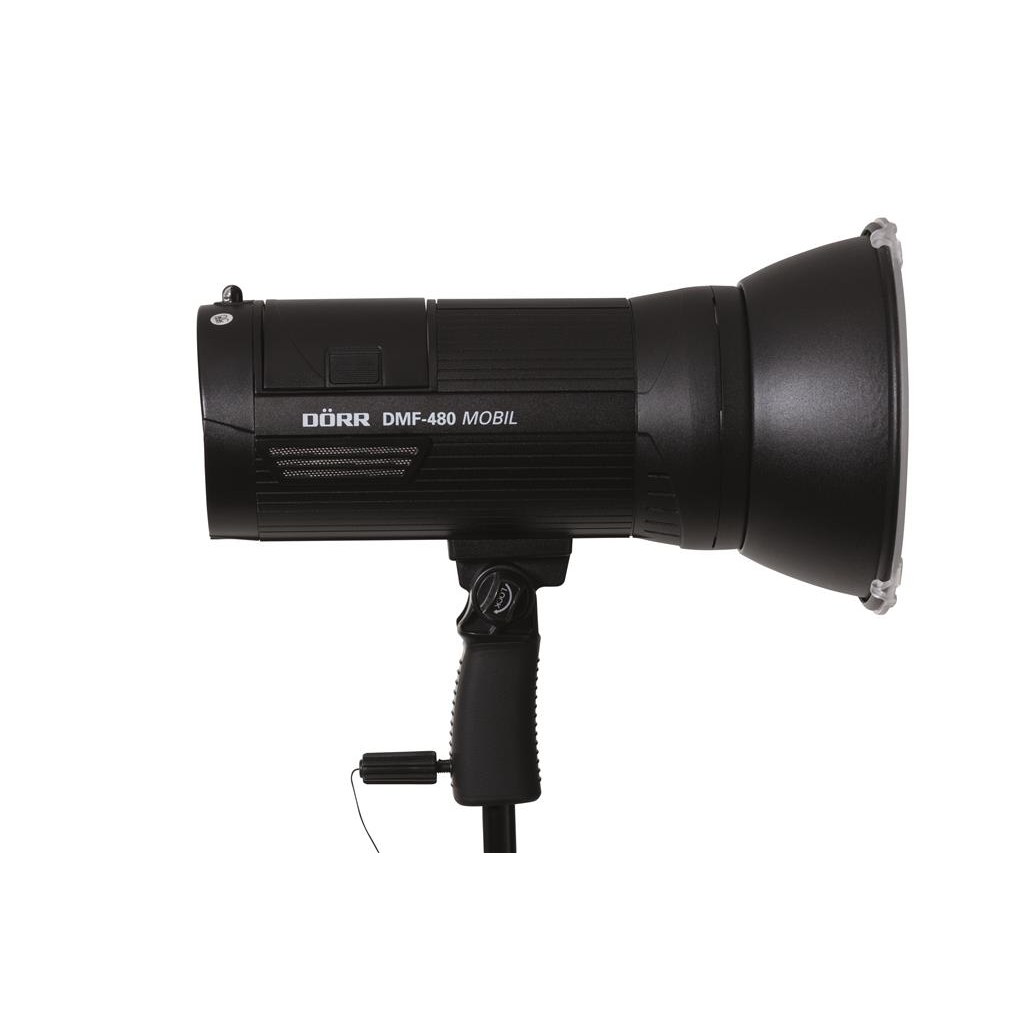

DMF-480 MOBILE STUDIO FLASH WITH ALU CASE

With the powerful DÖRR DMF-480 you have a robust battery studio flash for mastering a multitude of photographic tasks in the studio and on location.

LITHIUM ION BATTERY

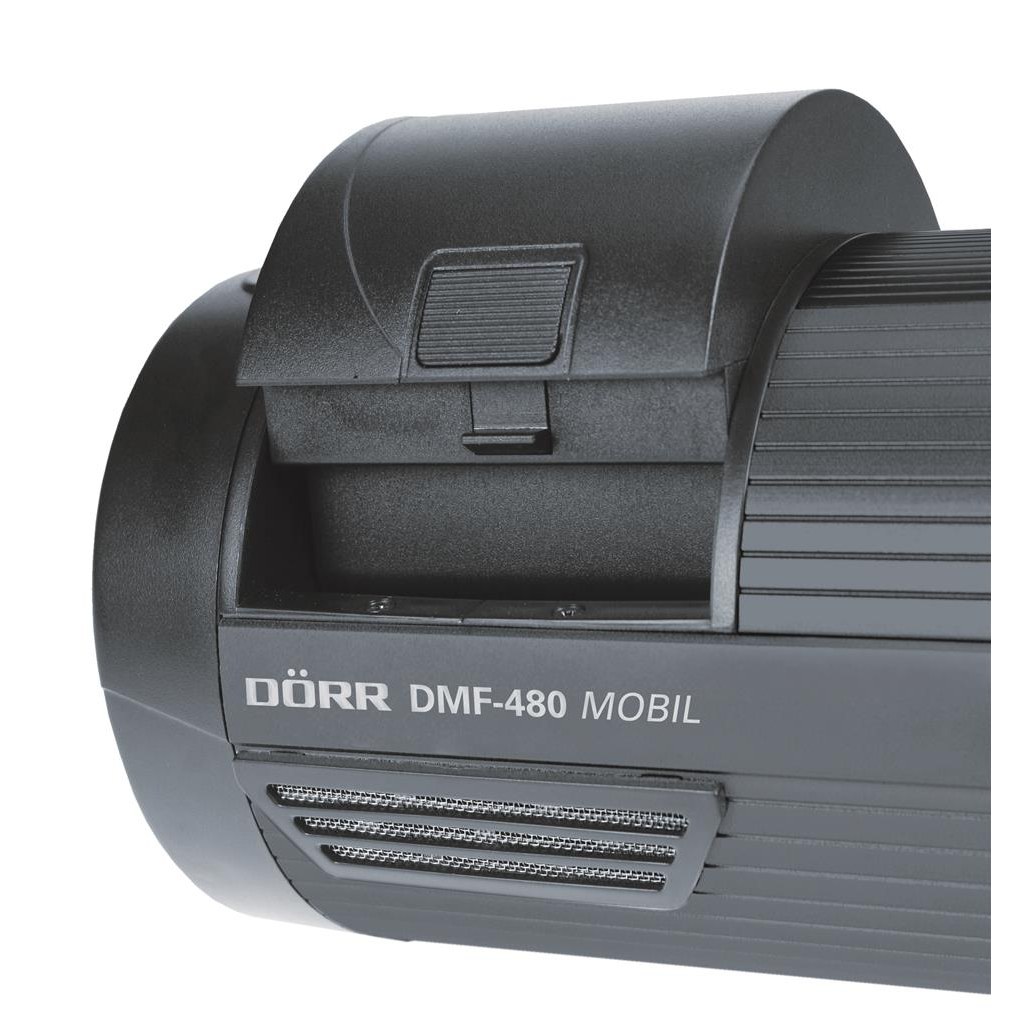

The interchangeable Li-Ion battery ensures self-sufficient power and allows to trigger the flash up to 600 times at full power. The respective charger is included in the package. For even more mobility, we recommend purchasing a second battery.

DETAILS
• 400 Ws flash power
• Manual power setting from 1/64 – 1/1 in full EV steps
• Fast flash recycle time enables quick working
VARIOUS FLASH FUNCTIONS FOR EXCITING EFFECTS:

* Multiple flashes during one exposure, e.g. to represent the movements of an athlete as a sequence of movements. Frequency (1-10 Hertz) and number of flashes (5-10-15-20 or 25) can be selected.

* 5 setting options with shortened HIGH-SPEED flash duration from 1/2000 to 1/11000s to freeze fast movements in the picture.

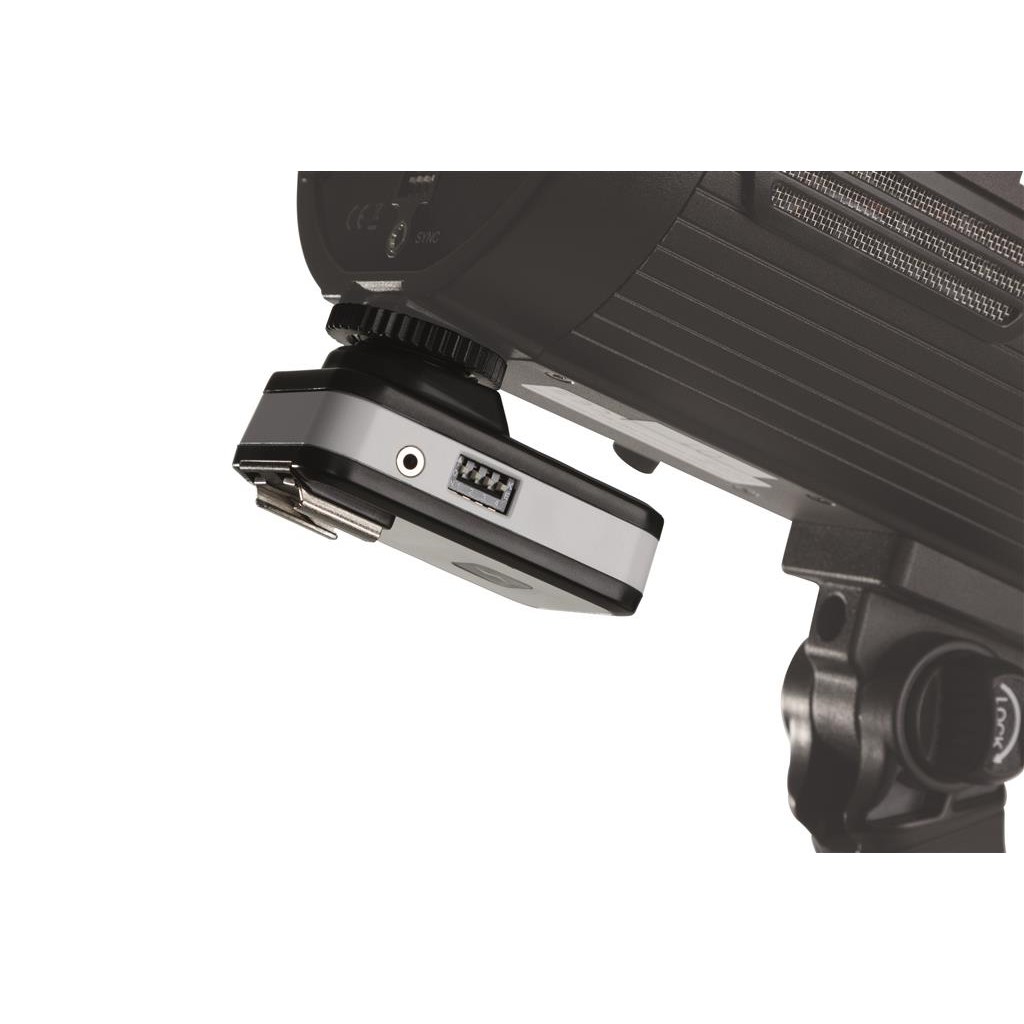

* With the supplied radio trigger, you can trigger the flash wirelessly. The range is up to 100m. In order to avoid interference sources, the integrated radio receiver offers 16 selectable radio channels. Alternatively, the studio flash can be triggered via the slave photocell or the test button.

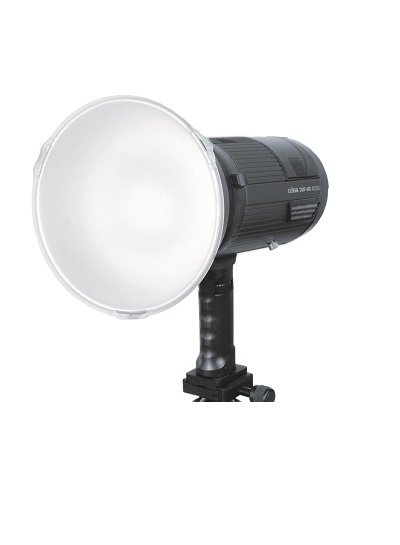

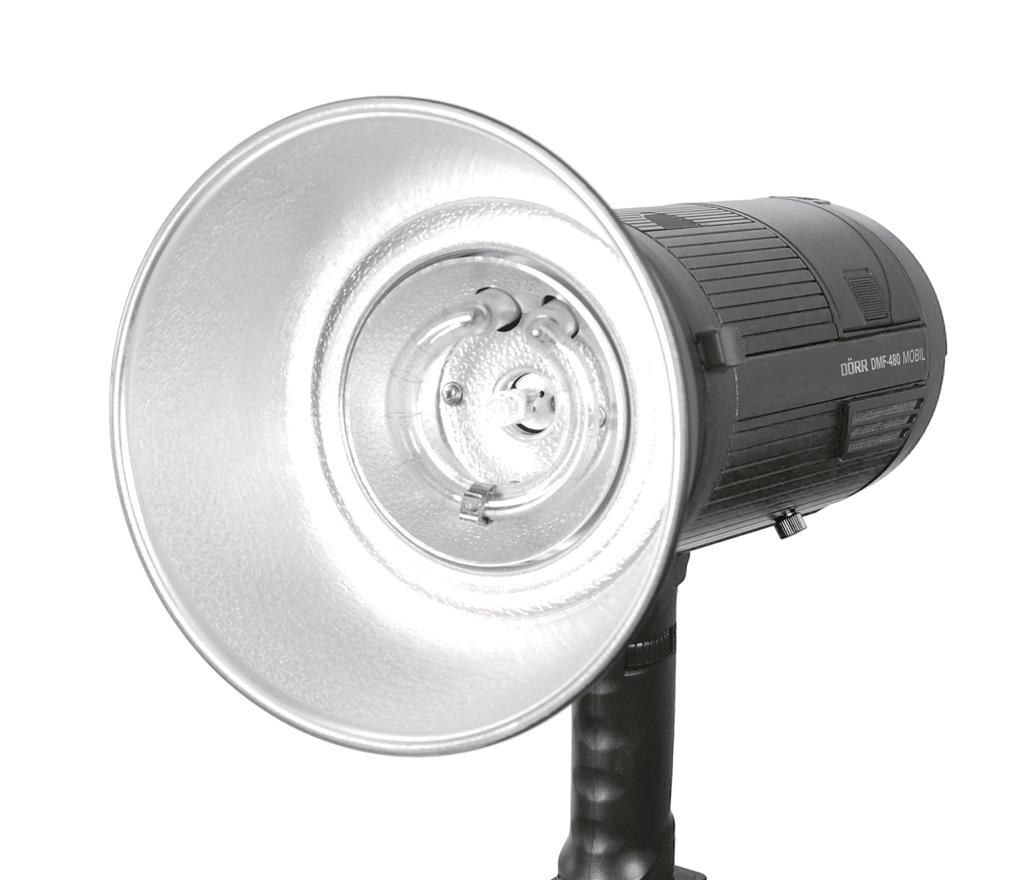

* For a creative light scenes, the DMF-480 with Bowens bayonet can be used with manifold DÖRR light formers (DÖRR adapter ring optional). The DFM-480 comes with a standard reflector and an attachable front diffuser, which is used for soft light e.g. for portrait shootings.

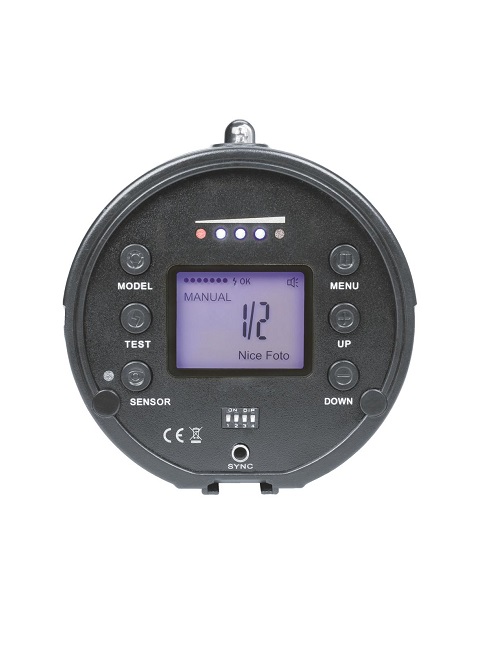

* The intuitive menu navigation and the user-friendly control panel with large display and battery indicator make everyday studio work easier.
MORE FEATURES
• Powerful LED modelling light for reviewing shadows and reflections before taking the picture
• Integrated umbrella holder for the use of reflector and diffuser umbrellas

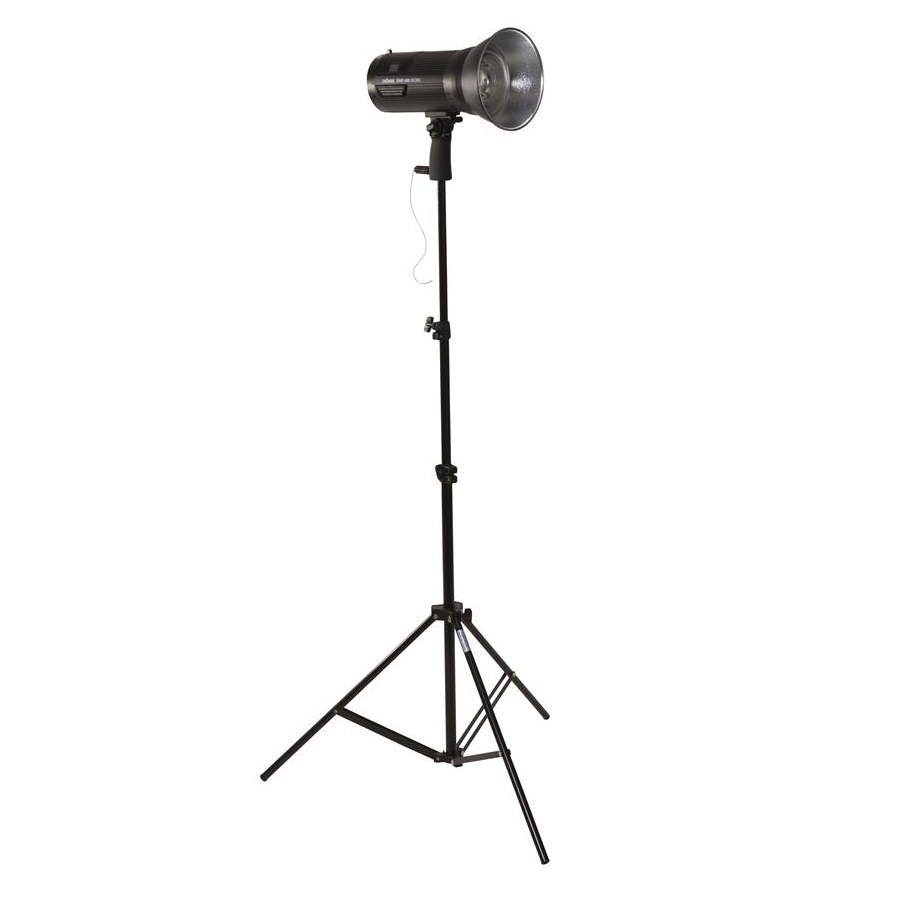

• Tiltable handle with integrated light stand mount (DÖRR light stands optionally available)
• Automatic overheating protection
• Robust aluminium housing with shoulder strap

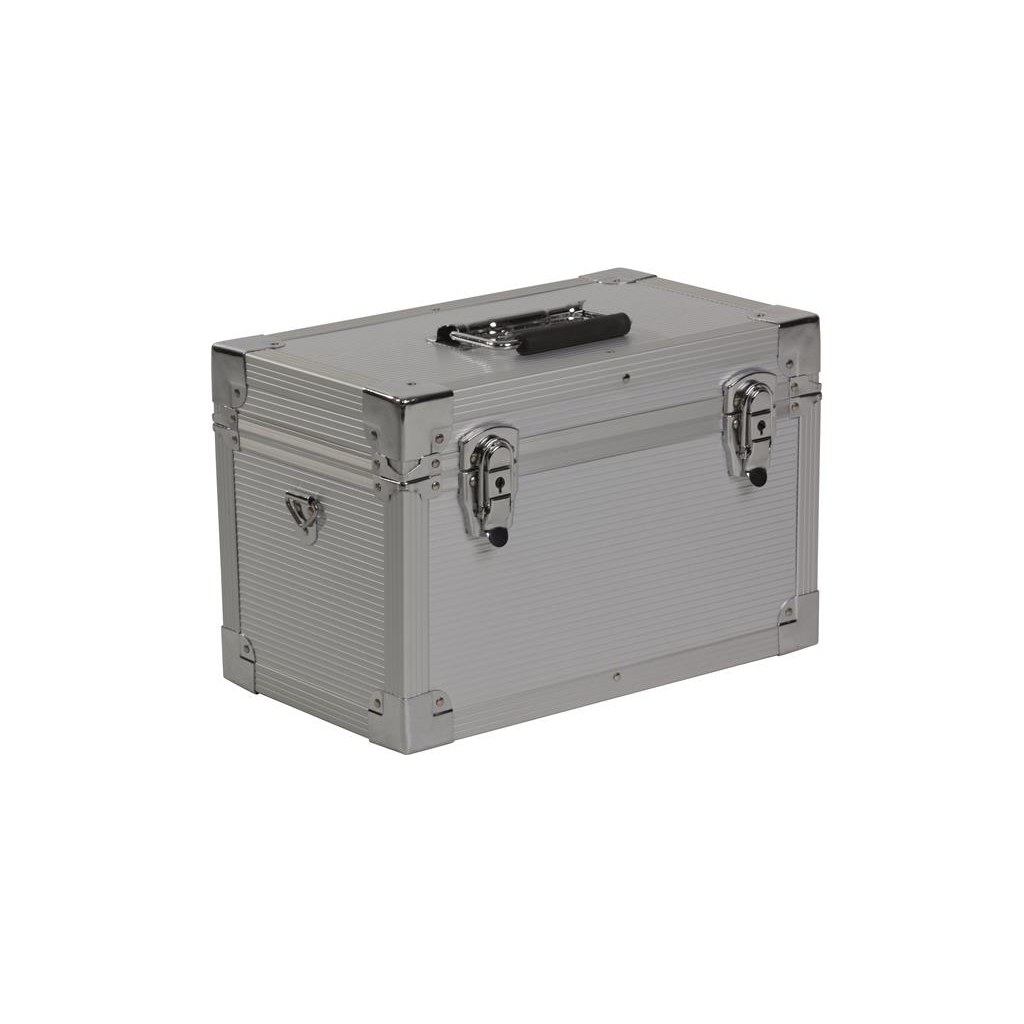

• Including transport case made of aluminium (external dimensions approx.: 35.5 x 23 x 21 cm)

STANDARDS

Operating temperature approx. [°C]	-10°C to +40°C
Flash triggering via	Photocell, test button, wireless flash trigger (optional: sync cord)
Dimensions with standard reflector approx. [cm]	18,5 x 18,5 x 32 cm
Dimensions w/o standard reflector approx. [cm]	13 x 14 x 26 cm
Flash duration approx.	1/11000s~1/2000s (High Speed Flash)
Flash Recycling Time approx.	0,1~3,5 s
Modelling light	LED 5W
Color temperature max. [Kelvin]	5.500 K
Power supply	Lithium Ion battery 11.1V/6600 mAh (9*18650C LB-01)
Number of flashes	max. 600 flashes (full ratio), 38.000 flashes in speed flash mode (FP)
Flash power approx.	400 Ws
Battery charging time	5 h
Radio receiver	Built-in, frequency 2,4 GHz, range up to 100 m
Power range	1/64 – 1/1 in full EV steps
Overheating protection	Yes
Power supply incl.	Yes
Weight approx. [g]	2300 g
No.	371320
Scope of delivery	1x Studio flash with battery, reflector and front diffuser, 1x radio trigger
